Customized Design Steel Structure Space Frame Airplane Hanger In
China
Product description
The steel structure building is widely used in the construction of
buildings such as warehouses, workshops, and large
factories.hangar/garage/chicken shed, exhibition hall, agricultural
storage, logistic centers and platform etc.
Steel structure hangars is kind of durable and strong material. It
can meet the requirements for personal aviation storage, commercial
aircraft and private jets. Steel is the best construction material
for aircraft hangars due to its flexible design, durability and
resistance to harsh weather, water, mold and termites.
The steel structure hangar is a large-span single-story building
for maintenance aircraft and is the main building in the aircraft
maintenance area. According to the different requirements of
aircraft maintenance quantity and maintenance project, the plane
layout, building height and structure form of hangar are also
different, mainly depending on the following factors:
Why steel structure?
The layout and height requirements of the hangar are special, which
will affect the structure of the hangar directly. Because of the
large span of hangar, the proportion of structural dead weight
(mainly roof system) in the total load is also large. If the
structural dead weight can be reduced, it will be obtained. Obvious
economic results have been achieved.
The steel structure has the advantages of high strength, light
weight, small section, weldability and simple manufacturing
process.
Therefore, it is common to use steel structure as roof bearing
system in long-span structures. Space structure system has good
force and light weight, which can solve some problems that plane
structure system can not solve.
Product features
1. Easy to dismantle and assemble (because of connection with
bolts)
2. High structural stability
3. Good appearance
4. Flexible design
5. Large span and large height
6. Short delivery time
7. Good heat insulation effect
8. Good ventilation effect
9. Long service life
10. Environmentally friendly
Product material list
| Embedded parts | Name of material | Specification and material |
| Anchor bolt | M30 |
| High strength bolt | M20,10.9S |
| Common bolt | M16 |
| Galvanized bolt | M12 |
| Shear nail | M16 |
| Main steel frame | Steel column(Q345B) | HN298*149*5.5*8 |
| Wind resistance column(Q345B) | HN248*124*5*8 |
| Roof column(Q345B) | HN248*124*5* |
| Tie rod | Ø 89*3.0 |
| Horizontal support | Ø 16 |
| Roof purlin(Galvanized) | C140*45*20*2. |
| Wall purlin(Galvanized) | C140*45*20*2. |
| connecting plate | 6mm～20mm steel sheet |
| Maintenan | Roof Tile- PU sandwich panel | 50mm color steel thickness: 0.426mm |
| Outside wall panel --PU sandwich panel | 50mm color steel thickness: 0.426mm |
| Gutter | 2.0mm Galvanized Gutter |
| Down pipe | 110PVC |
| Trimming | 1.0mm galvanized steel sheet |
Steel Structure Building materials display

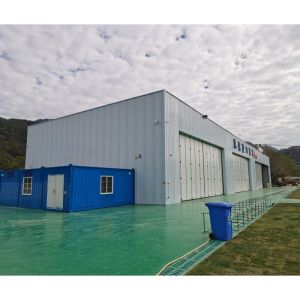

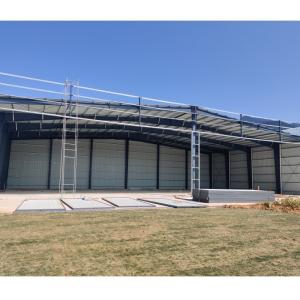

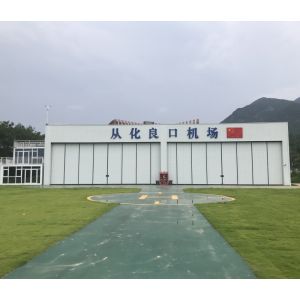

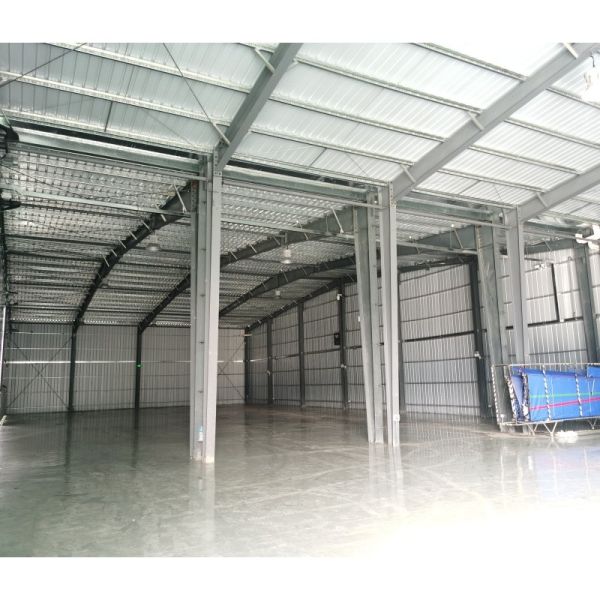

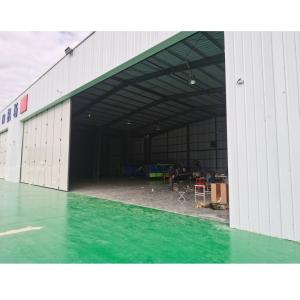

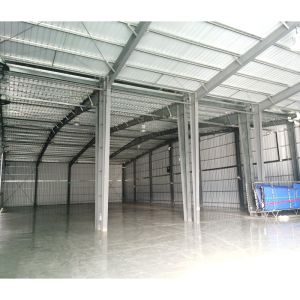

Projects installation display
Included with your custom steel structure buildings are
computer-produced drawings, which provide all the necessary
information for an engineer to prepare the proper foundation for
your steel building. And you’ll receive detailed drawings and
technical support during the erection of your building. If
necessarye, we also could dispatch engineer to guide on site.
About US
TianPuAn Building Materials Technology Co.,Ltd., also known as
TianPuAn Prefab house Co. Limited starts is founded in 2008. Since
then, we have been a professional manufacturer of steel structure
building,container house,prefabricated house, railings, light steel
villa, sandwich panel and profiled steel with ISO9001&SGS
certification. We have two production workshop with total area
20,000sqare meter plant and equipped an automatic spraying line.
Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been position our business for the
domestic market and earned waves customers for stable purchase.
From these two years, we begin our oversea business. Luckily , we
have a good team who profession in design, installation and export.
We believe on the base of what we have done in domestic , we can do
better container houses, steel structures, railings, prefab houses,
light steel villas around the world.
We can quote if you can offer the following information
1. Size: Length,Width,Roof Height and Eave Height.
2. Column and Beam: Hot rolled or welded H section beam.
3. Purlin: C-section.
4. Roof and Wall panel: Single layer corrugated sheet sheet or
EP/Rock Wool/PU
sandwich panel.
5. Doors and Windows: Rolling up / sliding / side-hung door and
window
6. Surface: Twice anti-corrosive primer + finish painting or
Hot-dipped Galvanized
7. Local Climate: 1.Wind speed 2.Snow load 3.Earthquake grade if
have
8. Drawing: 1. Quote as per clients' drawing 2. Design as per
clients' requests.
Payment Terms
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70%
before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Market
Products have been exported to North America, the Middle East,
Africa, Asia and other countries and regions.
If you are interested in steel structure building or need a
building price, call today !
